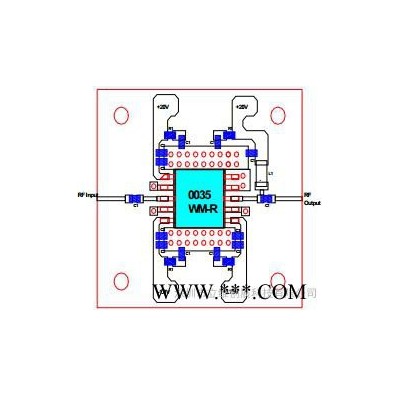

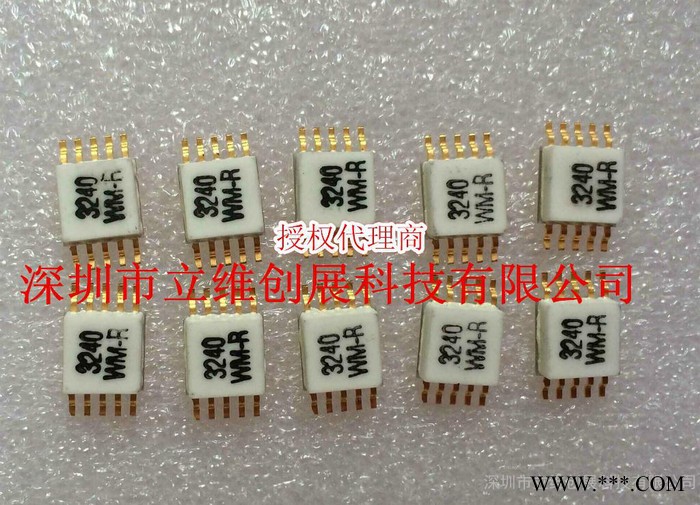

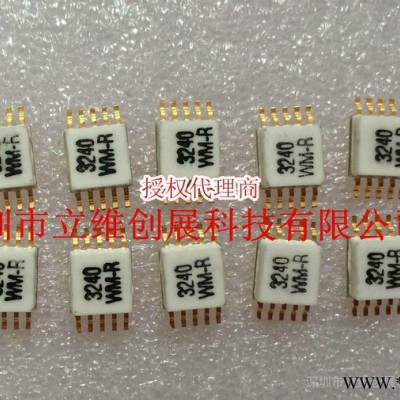

AMCOM’s AM003536WM-BM/FM-R is an ultra broadband GaAs MMIC power amplifier. It has 23dB gain and 36dBm output power over the 0.01 to 3.5GHz band. This MMIC is in a ceramic package with both RF and DC leads at the lower level of the package to facilitate low-cost SMT assembly to the PC board. When mounting directly to PCB, please see application note AN700 for instructions. Because of high DC power dissipation, we strongly recommend to mount these devices directly on a metal heat sink. The AM003536WM-FM-R is the AM003536WM-BM-R mounted on a gold plated copper flange carrier. There are two screw holes on the flange to facilitate screwing on to a metal heat sink. This MMIC is RoHS compliant.

GaAs MMIC放大器AM003536WM-BM-R和AM003536WM-FM-R。AM003536是一款超寬帶砷化鎵MMIC放大器，頻率范圍從10MHz覆蓋至3.5GHz，具有高輸出功率高增益。高性能使得這款放大器廣泛應用于軟件無線電、儀器儀表和增益模塊等等。

AMCOM的GaAs MMIC放大器AM003536WM-BM-R和AM003536WM-FM-R兩者的聯系與區別：

1、AM003536WM-FM-R是將AM003536WM-BM-R組裝在一個鍍金銅法蘭載體用螺釘固定在一個金屬散熱器，有兩個法蘭上的螺絲孔，方便用螺釘固定在一個金屬散熱器。
2、AM003536WM-BM-R和AM003536WM-FM-R：增益高達23dB，輸出功率36dBm
3、AM003536WM-BM-R和AM003536WM-FM-R均通過無鉛認證RoHS compliant
